Ohio Contact replacement crane controls for Cutler Hammer No. 912 50 Amp Single Pole DC Contactor. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

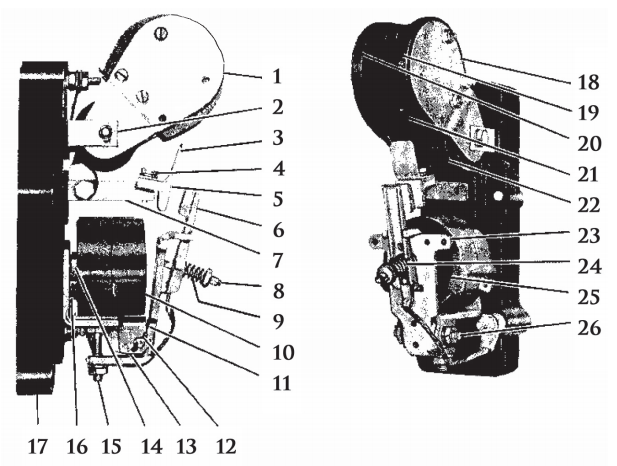

| Item No. | OEM No. | Description |
|---|---|---|
| 1 | 62-474 | Blowout Complete |
| 2 | 79-5375-2 | Bracket |
| 3 | 62-440 | Arc Guard |
| 4 | 911-5445Z | Long Hex. Screw |
| 4 | 916-682Z | Lockwasher |
| 5 | 3-1258 | Contact (Silver Faced) |
| 5 | 23-3286 | Contact |
| 6 | 40-522 | Contact (Silver Faced) |
| 6 | 40-522-4 | Finger |
| 7 | 18-1395-2 | Contact Post |
| 7 | 18-1395 | Contact Post |
| 8 | 15-797 | Self Locking Cup Nut |
| 9 | 69-95 | Spring |
| 10 | Coil | Give # on Coil |
| 11 | 69-179 | Spring |
| 12 | 13-3186 | Spring Pin |
| 13 | 17-6904 | Magnet Frame |
| 14 | 51-64 | Core |
| 15 | 916-198 | Lockwasher |
| 15 | 915-803Z | Nut |
| 15 | 11-1812 | Adjusting Screw |
| 16 | 69-2312 | Spring |
| 17 | 81-7302 | Molded Base |
| 17 | 81-7145 | Molded Base |
| 18 | 62-474-3 | Pole Piece |
| 19 | 73-1194 | Arc Shield |
| 20 | 73-1194-2 | Arc Shield |
| 21 | 23-3311-3 | Protecting Clip |
| 23 | 24-4025-2 | Armature Lever |
| 24 | 49-1204-13 | Spring Gland |
| 25 | 4416-134 | Washer |
| 26 | 13-3239-2 | Shaft |
| 27 | 13-3239-2 | Power Terminal Pressure Lug |
