General Electric IC9528 A103 16" Brake

Ohio Contact replacement crane controls for General Electric IC9528 A103 16" Brake. When you locate the product(s) of your choice, please call 800–310–5999 or click on the part number below to email inquiry for pricing, availability or questions you need answered!

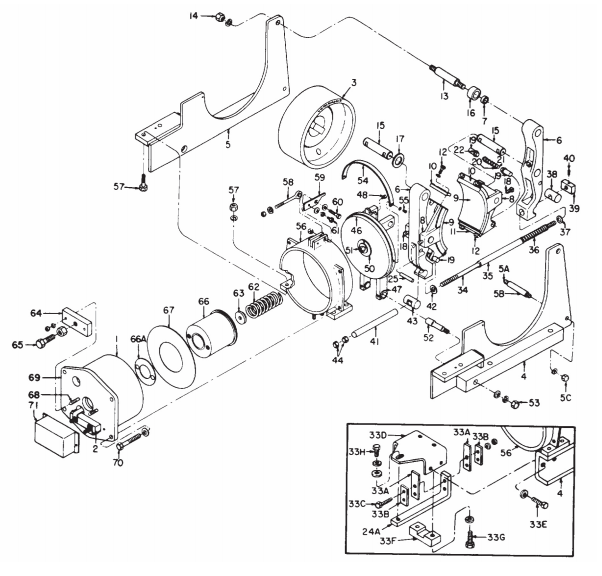

General Electric IC9528 A103 16" Brake

Item No. OEM No. Description
1 1D179G1 Shunt Coil
1 1D179G106 Coil
1 1D179G110 Coil
1 1D179G1A Coil
1 1D179G103 Coil
1 1D179G100 Coil
1 1D179G107 Coil
1 1D179G108 Coil
1 1D179G109 Coil
1 1D179G101 Coil
1 1D179G105 Coil
1 1D179G104 Coil
1 1D179G102 Coil
2 229B781G10 Terminal Board
4 171C247G17 Frame Front
5 171C247G18 Frame Rear
5 282A872P4 Tie Stud
5 229B790P10 Spacer
6 171C266G22 Yoke with Bushings
7 573A608P5 Bushing for Yoke
8 171C219P1 Brake Shoe
9 305A4800P4 Lining and Support Plate Assy.
10 282A875P10 Clamp for Lining
11 282A875P4 Clamp for Lining
12 N93P29016 Screw
13 287A121P4 Bearing Pin for RH Yoke
14 N200P3 Nut for Bearing Pin
15 287A122P4 Bearing Pin for LH Yoke
16 282A763P3 Seal
17 282A770P9 Thrust Washer
18 577A124P3 Set Screw for Brake Shoe
19 282A862P4 Friction Plug for Brake Shoe
21 282A860P14 Guide Pin for Spring
22 N908P227B Retain Ring for Friction Plug
24 138A1173P4 Pivot Arm for Yoke
25 287A120P4 Pivot Pin for Yoke
33 138A1174P4 Spring Strip for Pivot Arm
33 138A1178P4 Backing Strip
33 N22P25032B6 Screw Fastening Spring Strip
33 104B9965P4 Support for Pivot Arm
33 N21P29020 Adjusting Screw for Pivot Arm
33 138A1175P4 Guide for Pivot Arm
33 N21P29024 Adj. Screw for Pivot Arm
33 N21P29024 Adj. Screw for Pivot Arm
34 104B9964P4 Tie Rod
35 577A142P20 Spacer for Tie Rod
36 5144483P1 Compression Spring
37 N402AP50B6 Spring Seat
38 285A839P4 Rocker Pin
39 233B565P4 Nut for Tie Rod
40 N70P2110B6 Set Screw
41 577A129P28 Tube
42 282A770P13 Washer
43 287A125P4 Stainless Steel Rocker Pin
43 138A1176P4 Rocker Pin
43 138A1191P4 Stainless Steel Rocker Pin
44 N227P82 Tie Rod Nut
46 229B796G4 Armature with Bushings
47 573A608P11 Bushing for Armature
48 577A124P3 Set Screw for Brake Shoe
50 282A765P1 Spring Seat
51 N21P29020 Adjusting Screw for Pivot Arm
52 323A1972P4 Bearing Pin
52 N910P137C6 E ring
53 N200P39 Nut for Bearing Pin
54 282A775P4 Dust Cap
55 N57P21008B Screw
56 111C9017P1 Magnet Frame
57 577A190P4 Screw
58 282A867P2 Manual-Release Rod
59 282A766P1 Armature Gap Indicator
60 N22P29040B6 Hinge Screw
61 N530P1008B6 Drive Screw
62 5144467P1 Torque Spring
63 282A886P4 Spring Seat
64 282A753P1 Retainer
65 282A768P4 Adjusting Screw
66 978B347P2 Magnet Core
66 282A852P2 Shim
67 282A859P4 Retainer for Magnet Coil
68 282A861P8 Stud for Magnet Core
69 394B561P1 Back Plate, Outer
69 394B588P1 Back Plate, Inner
70 N93P35076 Screw
71 218A6420G3 Conduit Cover
0 139B8693G1 Torque Gauge Assy.
