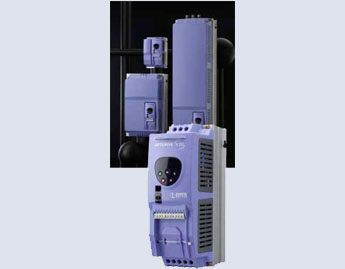

Optidrive VTC

VARIABLE TORQUE DRIVES FOR FANS & PUMPS

  • Rugged compact packaging
  • Silent running with up to 32KHz switching
  • Motor short circuit protection
  • Spin start
  • Output up to 120Hz
  • 8 Preset speeds
  • Built-in DB transistor standard
  • Line reactors, frame sizes 4, 5 & 6
  • Integral RFI filter
  • Bipolar 12 bit analog input (isolated +/-10V or 4-20mA)
  • Easy installation and fast start up
  • Fiber optic & RS232/485 networking
  • RS485 ModbusRTU up to 115kbps
  • Optiwand optical programming tool
  • Single phase input up to 60 hp
  • Isolated control circuits
  • Power loss ride through
  • Process control options
  • Programmable i/o
  • Integral PID controller
  • Automatic energy optimizer
  • Sleep mode
  • Fault log
  • Intelligent fire mode
  • Hours run and KWh log
  • 50°C ambient
  • Plug-in control terminals
[optidrive_list]

OPTIDRIVE VTC – 220/240V, SINGLE PHASE IN, 230V, 3-PHASE OUT
Size Model Special Features Heavy Duty Rating
110%, 60 sec overload
HP Amps
2 ODV -22020-US Filter, Brake Transistor 2.0 7.0
2 ODV-22030-US Filter, Brake Transistor 3.0 10.5

OPTIDRIVE VTC – 220/240V, 3-PHASE IN (1-PH 50% DERATING), 230V, 3-PHASE OUT
Size Model Special Features Heavy Duty Rating
110%, 60 sec overload
HP Amps
3 ODV -32040-US Filter, Brake Transistor 4.0 14.0
3 ODV -32050-US Filter, DC Chokes, Brake Transistor 5.0 18.0
3 ODV -32075-US Filter, DC Chokes, Brake Transistor 7.5 24.0
4 ODV -42100-US Filter, Line Chokes, Brake Transistor 10.0 39.0
4 ODV -42150-US Filter, Line Chokes, Brake Transistor 15.0 46.0
4 ODV -42200-US Filter, Line Chokes, Brake Transistor 20.0 61.0
4 ODV -42250-US Filter, Line Chokes, Brake Transistor 25.0 72.0
5 ODV -52300-US Filter, Line Chokes, Brake Transistor 30.0 90.0
5 ODV -52400-US Filter, Line Chokes, Brake Transistor 40.0 110.0
5 ODV-52600-US Filter, Line Chokes, Brake Transistor 60.0 150.0

OPTIDRIVE VTC – 380/480V, 3-PHASE IN, 380/460V, 3-PHASE OUT
Size Model Special Features Heavy Duty Rating
110%, 60 sec overload
HP Amps
2 ODV -24020-US Filter, Brake Transistor 2.0 4.1
2 ODV-24030-US Filter, Brake Transistor 3.0 5.8
2 ODV -24050-US Filter, Brake Transistor 5.0 9.5
3 ODV-34075-US Filter, Brake Transistor 7.5 14.0
3 ODV -34100-US Filter, DC Chokes, Brake Transistor 10.0 18.0
3 ODV-34150-US Filter, DC Chokes, Brake Transistor 15.0 24.0
3 ODV -34200-US Filter, DC Chokes, Brake Transistor 20.0 29.5*
4 ODV-44250-US Filter, Line Chokes, Brake Transistor 25.0 39.0
4 ODV -44300-US Filter, Line Chokes, Brake Transistor 30.0 46.0
4 ODV-44400-US Filter, Line Chokes, Brake Transistor 40.0 61.0
4 ODV -44500-US Filter, Line Chokes, Brake Transistor 50.0 72.0
5 ODV-54600-US Filter, Line Chokes, Brake Transistor 60.0 88.0
5 ODV -54750-US Filter, Line Chokes, Brake Transistor 75.0 110.0
5 ODV-54100-US Filter, Line Chokes, Brake Transistor 100.0 150.0
5 ODV -54150-US Filter, Line Chokes, Brake Transistor 150.0 180.0
6 ODV-64160-US Filter, External Line Chokes, Brake Transistor 160.0 202.0
6 ODV -64200-US Filter, External Line Chokes, Brake Transistor 200.0 240.0
6 ODV-64250-US Filter, External Line Chokes, Brake Transistor 250.0 300.0
